Product Name

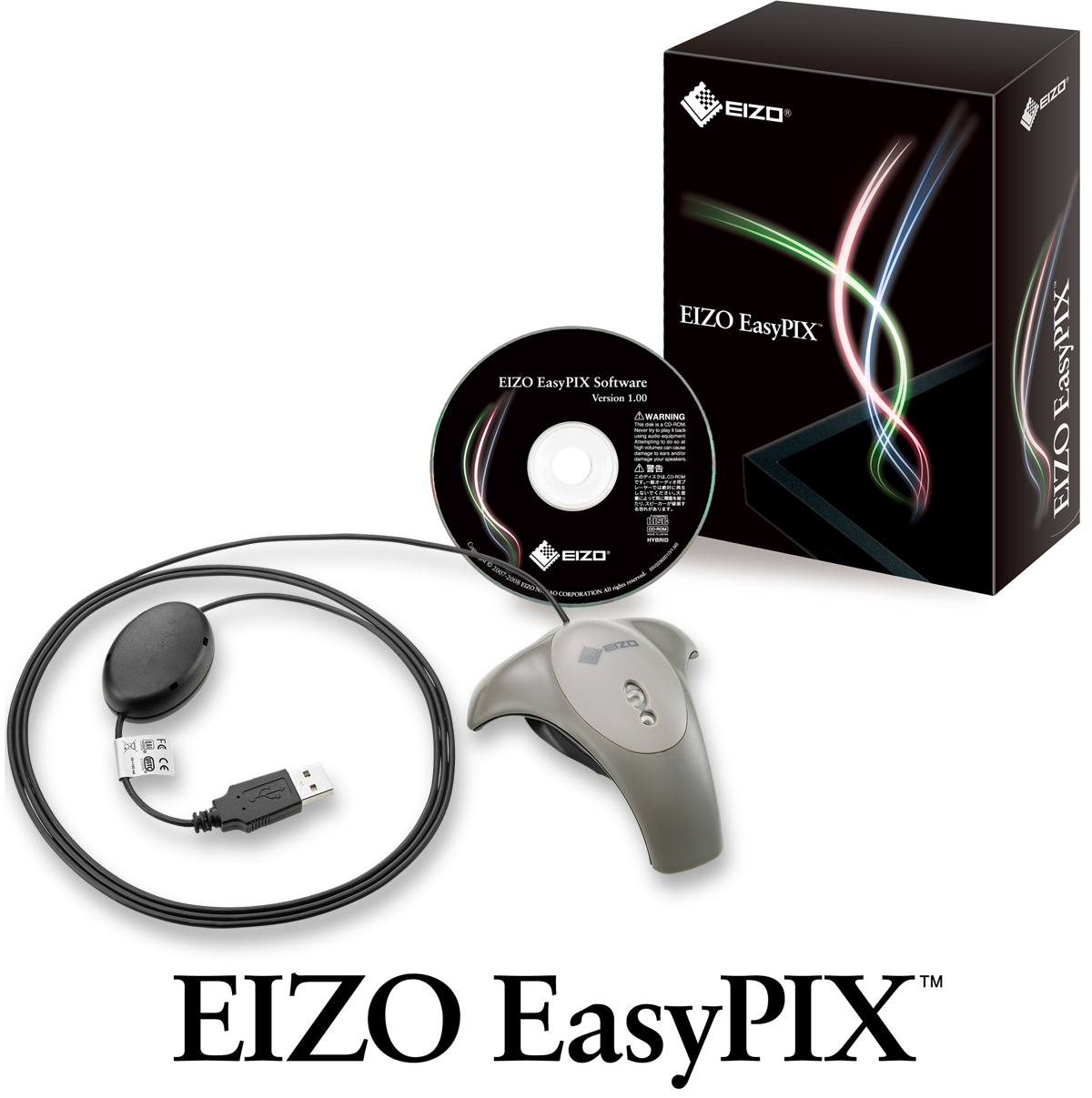

Color Matching Tool

EIZO EasyPIX lets professionals in graphic design, CAD animation, and digital photography get predictable color from select EIZO FlexScan and FORIS monitors through hardware calibration. (See specifications for compatible models.) It can also be used by amateur SLR camera enthusiasts as a simple way to match colors between their monitors and photo prints.
2 items

  • Features
  • Specifications
  • Documents
  • Compatible Products
  • Awards & Reviews

EIZO EasyPIX comes with four different modes.

Hardware Calibration Mode (for Advanced Users)

Select Calibration Values

Select a gamut and input target values for brightness, color temperature, and gamma.

Color parameters can be adjusted as follows:

Brightness: 60 – 160 cd/m2 in 10 cd/m2 increments.
Color temperature: 5,000 K – 6,500 K in 100 K increments.
Gamut*: Monitor native, Adobe RGB, or sRGB.
Gamma: 1.8 to 2.4 in 0.2 increments (varies by model).

  • Gamut adjustment is only available for The FlexScan SX series except with the FlexScan SX3031W.


You can also select calibration presets for common tasks listed in the table below. This takes the guesswork out of assigning values for users with limited color management knowledge.

Task Brightness Color Temperature Color Gamut Gamma
See/Adjust Pictures 80 cd/m2 5500 K Adobe RGB 2.2
Browse Web 100 cd/m2 6500 K sRGB 2.2
Create Documents 80 cd/m2 5500 K sRGB 2.2
Watch/Edit Movies 120 cd/m2 6500 K sRGB 2.2



Calibration Results

When calibration is finished, the results are displayed on the screen. You can name your profile in the "Adjustment Name" box.




Fine Tuning and Readjusting (Recalibrating)

If necessary, you can fine-tune the brightness and color manually by selecting "Finely Adjust."

You can also set EasyPIX to remind you to recalibrate your monitor after a specified number of hours have elapsed (not shown) and then recalibrate your monitor to the same settings by selecting "Readjust."


Matching Mode: Color Matching between Your Prints and Your Monitor (for Beginners)

EasyPIX can also be used for simple color matching between your prints and monitor either through paper white measurement or through visual perception. Both are explained below.

Color Matching Through Paper White Measurement

Hold the EX1 sensor about 25 cm away from the paper you will use for printing.


The white of the digital paper in the middle of your screen will change to match the white of your printing paper. If further adjustments to the white paper on the screen are required, you can tweak the monitor's color and brightness manually before calibrating.




Color Matching through Visual Perception

Adjust the color and brightness of your monitor to match the white of your printing paper.




Calibration

Whether you use the paper white measurement function or color match through visual perception, you calibrate the monitor with EIZO's EX1 sensor and create a profile.




Color Matching Achieved

Once you've created a profile for your monitor, you can share it with your retouching software. The color of your photo prints should match those displayed on your monitor.


Photo Viewing and Web Viewing Modes (for Beginners)

Two additional modes are also available. Photo Viewing Mode sets the monitor's color temperature to 5500 K, a common default setting at which many digital cameras take photos. It also lets you adjust the monitor's brightness.

Web Viewing Mode is ideal for previewing how others will see your photos when shared online. Web Viewing mode's 6500 K default color temperature is the same as most web browsers. Or, adjust the brightness manually for greater control.

Settings for Retouching Software

When color matching with ink jet printers, you can get better results in"Matching Mode" by applying the correct color management settings in your image retouching software.

Manufacturer Software Win Mac Color Management Compatible Initial Setting
Adobe Adobe Photoshop CS3/CS4/CS5 dot_black dot_black dot_black Color management active2
Adobe Photoshop Lightroom dot_black dot_black dot_black1 Color management active2
Adobe Photoshop Elements dot_black dot_black dot_black Color management active2
Nikon Nikon ViewNX dot_black dot_black dot_black Color management active2
Canon ZoomBrowser EX dot_black
ImageBrowser EX   dot_black
Digital Photo Professional dot_black dot_black dot_black User configured
Olympus OLYMPUS Master 2 dot_black dot_black dot_black
OLYMPUS Viewer 2 dot_black dot_black dot_black
Pentax PENTAX PHOTO Laboratory dot_black dot_black dot_black User configured
PENTAX PHOTO Browser dot_black dot_black dot_black Color management active2
Sony Image Data Lightbox SR dot_black dot_black
Image Data Converter SR Ver.2/Ver.3 dot_black dot_black dot_black User configured
Panasonic LUMIX Simple Viewer PHOTOfunSTUDIO dot_black dot_black
SILKYPIX Developer Studio 3.0SE dot_black   dot_black Color management active2
  • indicates compatibility
    Please configure your printer's driver to match the color space of the data you are printing.
    1 Depending on your usage environment, the printer's output and color may not match.
    2 Automatically references the monitor profile configured in the computer's operating system.


Photo Review (Australia)

June 2011

Editor's Choice (Rating of 9 out of 10)

"Easy to use and affordably priced, Eizo's EasyPIX is ideal for anybody who owns an Eizo monitor and suits users and all levels of expertise"
